CasioOak and its evolution. From the GA-2100 Series to the Luxe Black series
Origins of the "CasiOak"
The Casio G-SHOCK GA-2100 series stems from the desire to merge the visual and structural heritage of two foundational archive models in Casio's history into a single timepiece: the 1983 DW-5000C, the original progenitor conceived by Kikuo Ibe, and the 1989 AW-500, the brand's first model to combine analog and digital displays while eliminating any unnecessary aesthetic superstructure.
The project's development, led by product manager Junichi Izumi at the Casio Hanemura Technology Center and designer Ryo Amikura of the G-Design Room division, required two years of research to create a combined analog-digital successor to the historic first G-Shock.
The geometric element that defines the watch's identity is the octagonal bezel. Upon its introduction, the international watch community immediately associated the case shape with the silhouette of the Audemars Piguet Royal Oak designed by Gérald Genta.
This visual overlap led to the birth of the "CasiOak" nickname, originally coined by enthusiast Steven Davila within the Scottish Watches Facebook group.
Despite the commercial success of the nickname, Casio management and designers have clarified that the resemblance to the famous fine Swiss timepiece was not the result of an intentional emulation.
Junichi Izumi and Ryo Amikura explained that the octagonal geometry derives directly from the resin case of the 1983 DW-5000C, which featured chamfered corners following an eight-sided perimeter to absorb and dissipate the force of direct impacts. To define the proportions of the 2100 series octagon, the design team produced and examined over twenty 3D-printed prototypes before finding the ideal balance between wrist presence and clean lines.
The model's development had to overcome internal resistance within the company, tied to the fact that the extremely thin profile and formal cleanliness of the dial deviated radically from the brand's canonical standards, which had always been associated with large and massive cases.
Nevertheless, the development team's vision proved successful, transforming the 2100 series into a global commercial hit and establishing a new stylistic benchmark for the brand.
G-SHOCK OAK GA-2100-1A1 (The Iconic - link Amazon: https://amzn.to/4xn3q2m)
Casio OAK GA-2100-1A1
Casio OAK GA-2100-1A1
Casio OAK GA-2100-1A1
Technical Characteristics and Features of the GA-2100 Series
The primary engineering challenge in developing the GA-2100 was the drastic reduction of the overall case thickness without compromising the shock-resistance specifications mandated by G-Shock standards. This milestone was achieved through the implementation of the Carbon Core Guard protective structure.
The inner case is made of carbon fiber-reinforced resin, a composite material characterized by high structural rigidity and low weight.
The structure operates as a monocoque frame that protects the internal electronic module, making it possible to eliminate the thick protective layers of resin used in traditional models.
Simultaneously, optimizing the layout of the internal components kept the case thickness to just 11.8 mm, making the GA-2100 the thinnest analog-digital combination model ever produced by Casio.
Technical Feature | Standard GA-2100 Model Specifications |
Case Dimensions (H×W×D) | 48.5×45.4×11.8 mm |
Total Weight | 51 grams |
Case/Bezel Material | Resin/Carbon fiber-reinforced resin (Carbon Core Guard) |
Strap Material | High-strength resin/Bio-based resin |
Water Resistance | 20 BAR/200 meters |
Crystal | Mineral glass |
Power Supply and Battery Life | 2×SR726W batteries (approx. 3-year estimated life) |
Module Accuracy | ±15 seconds per month |
The dial adopts a three-dimensional configuration designed to offer depth and legibility.
An analog disk indicator for selecting the days of the week is positioned at the 9 o'clock position, while the portion between 4 and 5 o'clock houses a liquid crystal display for viewing digital information.
Integrated Features of Module 5611
The electronic module offers a comprehensive set of functions for daily and athletic use:
World Time: Management of 31 time zones corresponding to 48 major world cities, with UTC synchronization and daylight saving time activation or disabling.
High-Precision Stopwatch: One-hundredth-of-a-second (1/100) resolution for the first 60 minutes of timing, with automatic switching to second-by-second tracking up to 24 total hours. Measurement modes include elapsed time, split time, and 1st and 2nd place times.
Countdown Timer: Adjustable with a range from 1 second to 24 hours and programmable increments.
Alarms and Hourly Time Signals: Five independent daily sound reminders and a disableable hourly time signal.
Super Illuminator Illumination: High-intensity dual LED light system that ensures distinct visibility of both the analog dial and the digital screen, with selectable light beam duration of 1.5 or 3 seconds.
Hand Shift Feature: A temporary hands-retraction system that, via a button combination press, moves the analog hands out of the way of the LCD display to allow for an unobstructed reading of digital data.
Standard Variants and Compact Small Versions (GMA-S and GMA-P)
Since its introduction, the 2100 series has been offered in various dimensional and functional variants to meet the ergonomic needs of different user groups.
The standard 45.4 mm lineup has expanded into a wide selection of colors, including matte monochromatic finishes (among them the famous all-black GA-2100-1A1 version), translucent variants (Skeleton), and military-inspired tones.
The technological evolution of the standard range led to the launch of the GA-B2100 series, which integrates Tough Solar solar charging and Bluetooth Smartphone Link connectivity for automatic time synchronization and setting management via a dedicated app.
To fit smaller wrists, Casio introduced the GMA-S2100 line, featuring a case reduced to 42.9 mm in width that preserves the aesthetic setup and functional layout of the original model, including the 9 o'clock analog day-of-the-week disk.
A further evolution in terms of compact sizing is represented by the GMA-P2100 series.
Compared to the GMA-S line, the case width has been reduced by an additional 2.7 mm, reaching 94% of the mid-size model's dimensions, while the total strap length has been shortened by 10 mm to ensure a better fit on particularly slender wrists.
To preserve the visual harmony of the compacted case and avoid an overly crowded dial, the 9 o'clock analog sub-dial was removed in the GMA-P2100 series, making room for a clean, essential dial without a disk day indicator.
Comparative Parameter | GA-2100/GA-B2100 (Standard) | GMA-S2100 (Mid-Size) | GMA-P2100 (Compact) |
Case Width | 45.4 mm | 42.9 mm | 40.2 mm |
Lug-to-Lug Height | 48.5 mm | 46.2 mm | 46.0 mm |
Thickness | 11.8 mm | 11.2 mm | 11.2 mm |
9 O'Clock Sub-dial | Present (Day indicator) | Present (Day indicator) | Absent (Clean monochromatic dial) |
Strap Length | Standard (145 - 215 mm) | Reduced | Extra-reduced (-10 mm compared to S2100) |
Intended Use | Medium/large wrists, Unisex | Medium/slender wrists, Unisex | Very slender wrists, Women's/Youth |
Standard Variants on Amazon (click on the pictures)
CasiOak GA-2100SU-1A
CasiOak GA-2100-7A
CasiOak GA-2100-4A
CasiOak GA-2100-1A

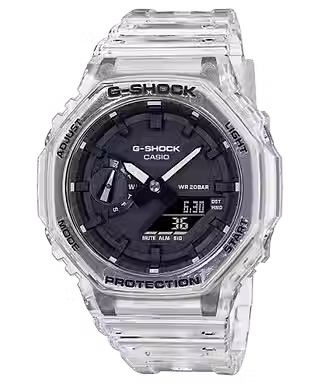

CasiOak GA-2100SKE-7A
CasiOak GA-2100FT-8AJR
CasiOak GA-2100-1A2
CasiOak GA-2100-1A3
CasiOak GA-2100WD-1ADR
CasiOak GA-2100GB-1A
G-Shock GAB2100FC-1A
CasiOak GA-B2100BBR-1A
CasiOak GA-2100-7A7
CasiOak GA-2100BM-7A8
CasiOak GA-2100BM-7A2
CasiOak GA-2100BM-7A5
CasiOak GA-2100K-2A
CasiOak GA-2100K-1A
CasiOak GA-2100K-5A
CasiOak GA-2100CM-8A
CasiOak GA-2100CM-5A
CasiOak GA-2110SU-3AER
G-Shock GA-B2100BEG-1A
Small Variant on Amazon (click on the pictures)
CasiOak GMA-P2100SR-7A
G-Shock GMA-P2100ZY-1AJR
CasiOak GMA-P2100M-2A
CasiOak GMA-P2100M-7AJF
CasiOak GMA-P2100-7A
CasiOak GMA-P2100BB-1A

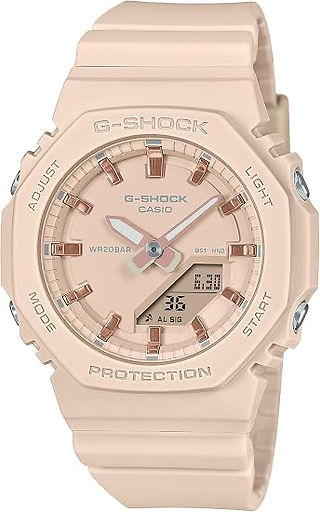

CasiOak GMA-P2100M-4AJF
Public Feedback, Criticism, and Cultural Impact
Feedback gathered from the enthusiast community and industry critics highlights widespread consensus around the GA-2100 series, shining a light on its strengths while also pointing out specific operational limitations.
The model's success is primarily tied to its favorable value-for-money ratio, combined with a dynamic and lightweight profile that ensures continuous comfort during daily use.
The low profile allows the watch to slide easily under shirt cuffs, expanding its use to less informal contexts.
The geometric resemblance to high-end timepieces has also fueled a vast customization (modding) phenomenon, with users replacing original cases and straps with third-party stainless steel components to recreate the look of an integrated sports bracelet.
Among the most commonly reported criticisms are legibility issues on the all-black (stealth) variants, where matte markers and dark hands reduce visual contrast in poorly lit environments.
The initial stiffness of the standard resin strap is another element sometimes subject to discussion, prompting some users to switch to more flexible straps or fabric bands.
Finally, customers less accustomed to the classic Casio interface occasionally note a lack of intuitiveness when reading the digital programming manual.
The Luxe Black Collection (LXB)
The introduction of the GM-2100 series, featuring a stainless steel-coated bezel, represented the first step toward a more mature positioning for the 2100 series.
The most recent expression of this path is the Luxe Black Collection (LXB), a line designed to reinterpret the standard series according to aesthetic canons rooted in maximum visual minimalism and research into surface finishes.
CasiOak Luxe Black models available on Amazon (Click on the pictures)
CasiOak Luxe Black GM-2100LXB-1A
CasiOak Luxe Black GM-2100LXB-1A9
CasiOak Luxe Black GM-2100YMG-9A
CasiOake Luxe Black GM-2100YM-8A
CasiOak GM-2100BB-1A
CasiOak GM-2100G-1A9
CasiOak GM-2100-1A
CasiOak GM-2100N-2A
CasiOak GMA-S2100SK-1AJF

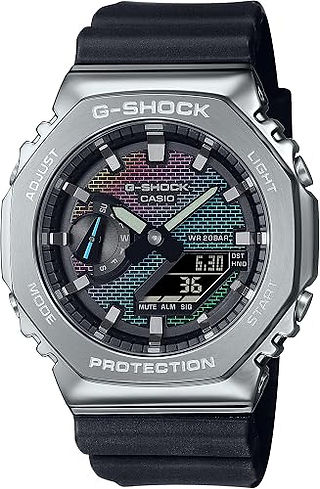

G-Shock Rainbow Brick Wall GM-2100RW-1A
G-Shock Rui Hachimura Black Gold
CasiOak GBM2100A-1A3
The Luxe Black series strips away superfluous decorations to focus on the contrast between matte dark tones and metallic elements created through physical vapor deposition (PVD) treatments.
The dial background adopts a micro-textured matte finish capable of absorbing incident light and reducing light reflections, providing a uniform base for the hour markers and hands.
The primary hour and minute hands have been completely redesigned with a slimmer, elongated profile and well-defined contours, while the applied indices feature a flat top section finished with metallic vapor deposition.
The collection is also distinguished by the widespread use of bio-based resin for the cases and straps, confirming an increasing focus on lower environmental impact materials.
The collection is divided into four distinct references, split between models with a bio-resin case (GA-2100LXB) and variants featuring a black IP-plated steel bezel (GM-2100LXB):
GA-2100LXB-1A: Matte black bio-resin case and bezel. The indices and dial details receive a silver vapor deposition treatment (silver accents) that creates a subtle contrast against the dark background.
GA-2100LXB-1A9: Retains the black bio-resin case configuration but uses gold metallic finishes (gold accents) for the indices and dial details.
GM-2100LXB-1A: Features a stainless steel bezel with black ion plating (Black IP) and a high-precision hairline finish. The dial integrates silver accents on the 9 o'clock sub-dial and along the inner perimeter of the crystal.
GM-2100LXB-1A9: The flagship variant, equipped with a hairline-finished black IP-plated stainless steel bezel paired with reflection-rich gold accents on the dial elements and day disk.
Specifications and Finishes | Standard GA-2100 (e.g., GA-2100-1A1) | Luxe Black GM-2100LXB (e.g., GM-2100LXB-1A/1A9) |
Bezel Material | High-strength resin | Stainless steel with Black Ion Plating (IP) and hairline finish |
Strap Material | Standard polymer resin | Bio-based resin with surface micro-texturing |
Dial Finish | Standard smooth / satin plastic | Deep matte black with anti-reflective micro-textured surface |
Hand Design | Wide with classic 2100 faceting | Slimmed-down, elongated, and re-proportioned for a minimal aesthetic |
Index Treatment | Molded or painted resin | Metallic vapor deposition (Vapor Deposition) in silver or gold |
Total Weight | 51 grams | 72 grams (due to the steel bezel cladding) |
Dimensions (H×W×D) | 48.5 × 45.4 × 11.8 mm | 49.3 × 44.4 × 11.8 mm |
Positioning | Sporty/Daily casual | Dressy-sport/High-end urban minimal |
Conclusion
The trajectory of the Casio G-Shock 2100 series represents a textbook example of how a heritage brand can refresh its design language without losing its core technological roots.
Born as a tribute to the original 1983 model and developed amidst skepticism from its own design team, the lineup has established itself as a benchmark platform for the global watch market.
The structure of the lineup allows Casio to cover multiple market segments:
The GA-2100 / GA-B2100 Series serves as the essential entry point, combining aesthetic versatility, modern connectivity, and high mechanical shock resistance at an accessible price point.
The compact GMA-S2100 and GMA-P2100 variants deliver a targeted response to the demand for smaller dimensions, with the P2100 series redefining the dial's layout by removing secondary indicators in favor of maximum visual clarity.
The Luxe Black Collection (GA-2100LXB / GM-2100LXB) demonstrates the design maturity the series has reached, elevating the watch's perceived value through refined surface treatments, anti-reflective matte finishes, and newly developed bio-based materials.
This evolutionary path confirms that the G-Shock octagon is far more than a passing trend, standing as a lasting modern classic in contemporary horology.
